PLC 9000
Overview
The range of RTUs and PLCs are with real time, multitasking softwares combined with powerful communication capabilities based on proven technology. Its open architecture enables net-operatability with other popular automation systems using universal protocol. They bring together the speed of a PLC, the precision of data logger and the flexibility of a large process controller.

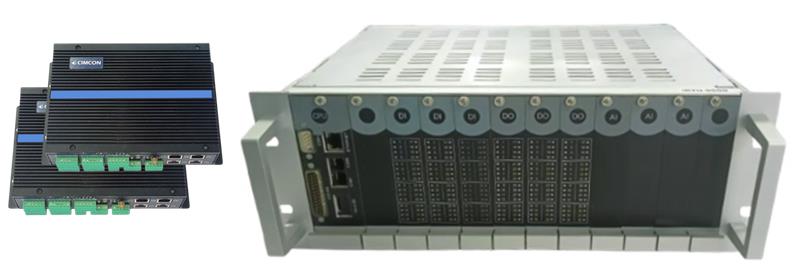

PLC 9000
PLC 9000 is a high density version of the Intelligent PLC Units that have proven themselves in many mission critical projects globally. It supports thousands of l/Os which are required for the most demanding control applications. Each PLC 9000 is a unique blend of rugged industrial I/Os, real time multi-tasking software and powerful communication capabilities.
Supports redundant CPU architecture. Both hot-standby dual CPU in a single rack and external CPU redundancy for remote I/O access — ensuring uninterrupted control and maximum system availability
Why PLC 9000?
CIMCON’s PLC 9000 is a powerful, high I/O density controller designed for mission-critical monitoring and control applications across Water, Power, and Oil & Gas sectors. Proven globally in demanding environments, it supports hundreds of I/Os, enabling seamless operation of complex automation tasks. Built with rugged industrial-grade I/Os, real-time multitasking software, and advanced communication protocols, PLC 9000 offers open architecture for easy interoperability with third-party SCADA and automation systems. Combining the speed of a PLC, the precision of a data logger, and the scalability of a DCS, PLC 9000 delivers unmatched flexibility and performance at a significantly lower cost.
Inside This Ultra Compact PLC
Quad core ARM processor
Upto 16 GB Flash, 2 GB RAM
4GB SD Card Data Storage
Up to x4 Ethernet ports
Hot Redundancy with PLC9000 R
High Density Digital and Analog I0 card
Combined functionality of RTU & PLC in one product
Field Isolation
Upto x2 RS232 and x2 RS485 ports
Modbus Master/Slave over serial and TCP
Time stamped DNP3 and IEC 60870 5 Protocol Support
3U 42T/63T size Rack...... (5.75" H x 8.4"/12.6" W)
Flow Chart based Programming Support
Key Features
- Multiple Wired & Wireless Connectivity Options
- High Speed IO Expansion
- Power Over Ethernet (POE+)
- On Board Sensors
- Computing at edge
- Easy to access ( HTTP/ MQTT )
- Cyber Security
